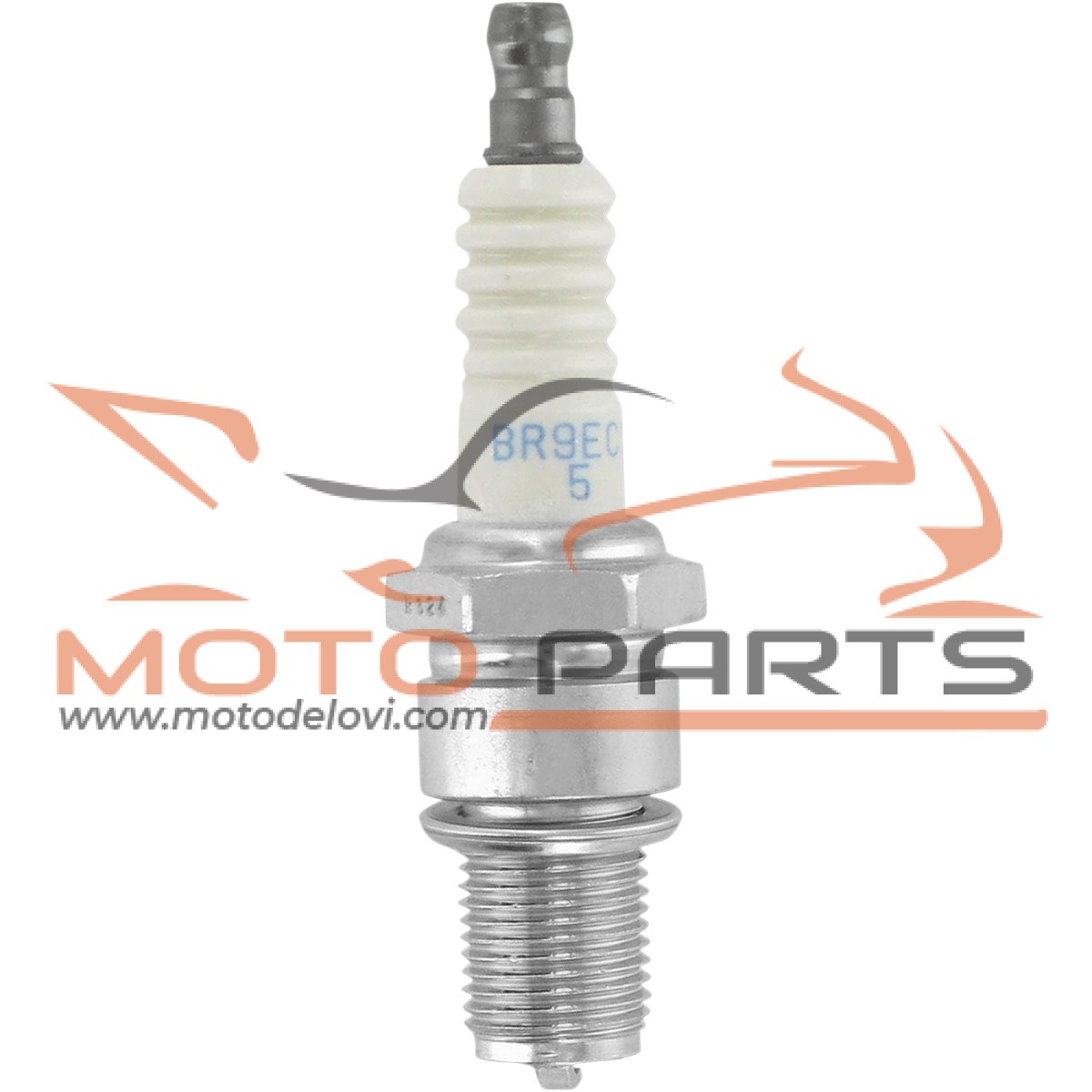

NGK SPARK PLUGS SPARK PLUG NGK BR9ECS-5
1.320 RSD
Spark Plug
Superior construction for serious power
Versatile plugs with wide operating heat ranges prevent fouling from running too cool and preignition from running too hot
Features high alumina ceramics for improved heat dissipation and electrical insulation, deep-seated copper core for a wider heat range and a nickel alloy tip for longer life
OEM replacement; has solid terminal nuts
Description
| HEAT RANGE | 9 |
| MODEL | Standard |
| TERMINAL CONFIGURATION | Solid Terminal |
| THREAD SIZE | 14 mm |
| STYLE | BR9ECS-5 |
| TYPE | Resistor Type |
| UNITS | Each |
| PRODUCT NAME | Spark Plug |
| CENTER ELECTRODE TYPE | Standard |
| ELECTRODE TIP MATERIAL | Nickel Alloy |
| CENTER ELECTRODE PROJECTION | Non-Projected |
| THREAD REACH | 19,1 mm (3/4″) |
| HEX SIZE | 20,6 mm (13/16″) |
| GROUND ELECTRODE CONFIGURATION | Single |
| SPARK GAP | 0,8 mm (0,031″) |
| GROUND ELECTRODE SHAPE | Standard |
| ELECTRICAL RESISTANCE | 5k Ohms |
| SPARK GAP IMPERIAL | 0.031″ |
| SPARK GAP METRIC | 0.8 mm |
| Make | Model | Displacement | Year | Country | Engine | Info | Position |
|---|---|---|---|---|---|---|---|
| SKI-DOO (BRP) | EXPEDITION 550 F Sport Fan | 550 | 2011 | ALL | |||
| SKI-DOO (BRP) | EXPEDITION 550 F Sport Fan | 550 | 2012 | ALL | |||
| SKI-DOO (BRP) | EXPEDITION 550 F Sport Fan | 550 | 2013 | ALL | |||
| SKI-DOO (BRP) | EXPEDITION 550 F Sport Fan | 553 | 2014 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | EXPEDITION 550 F Sport Fan | 553 | 2015 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | EXPEDITION 550 F Sport Fan | 553 | 2016 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | RENEGADE 550 F Sport Fan | 550 | 2010 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | RENEGADE 550 F Sport Fan | 550 | 2011 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | RENEGADE 550 F Sport Fan | 550 | 2012 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | RENEGADE 550 F Sport Fan | 550 | 2013 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | RENEGADE 550 F Sport Fan | 550 | 2014 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | SKANDIC 550 F WT Fan | 550 | 2012 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | SKANDIC 550 F WT Fan | 550 | 2013 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | SKANDIC 550 F WT Fan | 553 | 2014 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | GRAND TOURING 550 F Sport Fan | 550 | 2011 | ALL | |||
| SKI-DOO (BRP) | GRAND TOURING 550 F Sport Fan | 550 | 2012 | ALL | |||
| SKI-DOO (BRP) | GRAND TOURING 550 F Sport Fan | 550 | 2013 | ALL | |||
| SKI-DOO (BRP) | GRAND TOURING 550 F Sport Fan | 553 | 2014 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | GRAND TOURING 550 F Sport Fan | 553 | 2015 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F Fan | 550 | 2011 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F Fan | 550 | 2012 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F LT Fan | 550 | 2011 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F LT Fan | 550 | 2012 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F LT Fan | 550 | 2013 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F Sport Fan | 550 | 2011 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F Sport Fan | 550 | 2012 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | TUNDRA 550 F Sport Fan | 550 | 2013 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 | 800 | 2001 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Adrenaline | 800 | 2001 | ALL | |||
| SKI-DOO (BRP) | MX-Z 700 Adrenaline | 700 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Adrenaline | 800 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 700 Adrenaline | 700 | 2003 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Adrenaline | 800 | 2003 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2004 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2005 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2006 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2007 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2008 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2009 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Adrenaline | 800 | 2010 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Blizzard | 800 | 2007 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 700 Renegade | 700 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Renegade | 800 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Renegade | 800 | 2003 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade | 800 | 2004 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade | 800 | 2005 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade | 800 | 2006 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade | 800 | 2007 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade | 800 | 2008 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade | 800 | 2009 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 700 Sport | 700 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Sport | 800 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Sport | 800 | 2003 | ALL | |||
| SKI-DOO (BRP) | MX-Z 550 F Sport Fan | 550 | 2011 | ALL | |||
| SKI-DOO (BRP) | MX-Z 550 F Sport Fan | 550 | 2012 | ALL | |||
| SKI-DOO (BRP) | MX-Z 550 F Sport Fan | 550 | 2013 | ALL | |||
| SKI-DOO (BRP) | MX-Z 550 F Sport Fan | 553 | 2014 | ALL | 42 KW(57 PS) | ||
| SKI-DOO (BRP) | MX-Z 550 F TNT Fan | 550 | 2010 | ALL | |||
| SKI-DOO (BRP) | MX-Z 550 F TNT Fan | 550 | 2011 | ALL | |||
| SKI-DOO (BRP) | MX-Z 550 F TNT Fan | 550 | 2012 | ALL | |||
| SKI-DOO (BRP) | MX-Z 700 Trail | 700 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 Trail | 800 | 2002 | ALL | |||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade X | 800 | 2004 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade X | 800 | 2005 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade X | 800 | 2006 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade X | 800 | 2007 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade X | 800 | 2008 | ALL | 111 KW(151 PS) | ||
| SKI-DOO (BRP) | MX-Z 800 PTEK Renegade X | 800 | 2009 | ALL | 111 KW(151 PS) |
